HandyProbe Next
HandyProbe

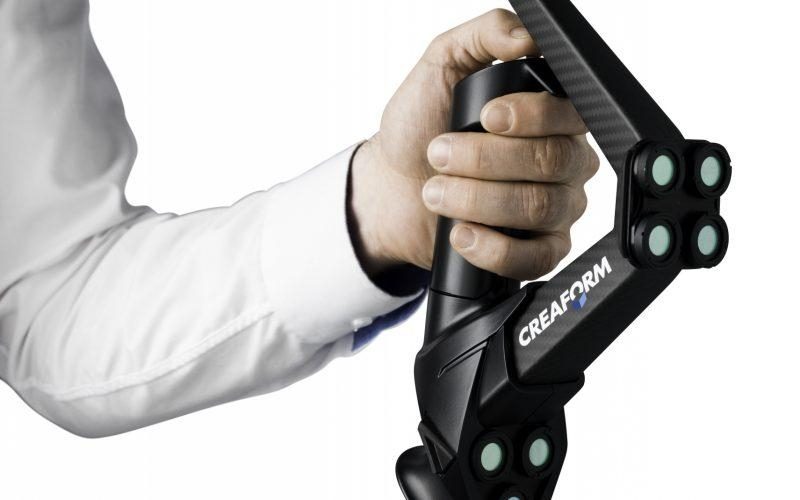

The HandyPROBE Next™ portable CMM provides measurement accuracy that is insensitive to the instabilities of any environment. Free of any rigid measurement setup, the portable CMM outperforms traditional portable CMMs on the shop floor. The C-Track optical tracker and wireless probe can be moved at any time during the measurement sequence and generate the same high-quality data.
New Features
- 2X more accurate
- Instant measurement
- Greater volume of 16.6 m3
- Sturdy design for shop floor hardware reliability
- Multi-function buttons for easier interaction with the software
TRUaccuracy
- Metrology-grade measurements: accuracy of up to 0.020 mm, high repeatability and traceable certificate
- Dynamic referencing: optical reflectors are used to create a reference system that is “locked” to the part itself, so users can move the object any way they want during measurement
- Volumetric accuracy of 0.064 mm (ASME B89.4.22 standard)
- Single point repeatability of 0.044 mm (ASME B89.4.22 standard)
- Accurate measurement of parts ranging from 0.2 to 10 meters in size
- No accuracy drift over time In your quality control with the easy field calibration procedure
TRUsimplicity
- No rigid setup required: the part and the system can be moved freely at any time during measurement
- Greater and easily extendable measurement volume
- Automatic alignment: optical reflectors allow for repetitive inspections without realignment
- Ergonomic, wireless probe
- Optional 3D scanning capabilities by adding the MetraSCAN 3D
- Multi-function buttons for easier interaction with the software
- Short learning curve and intuitive operation
TRUportability
- Optimized for use on the shop floor
- Portable CMM: the system can be easily brought wherever the part is
- Portable CMM case: the system, tripod and accessories fit into a single, portable carrying case
- No physical link between the probe and the system for maximum versatility
