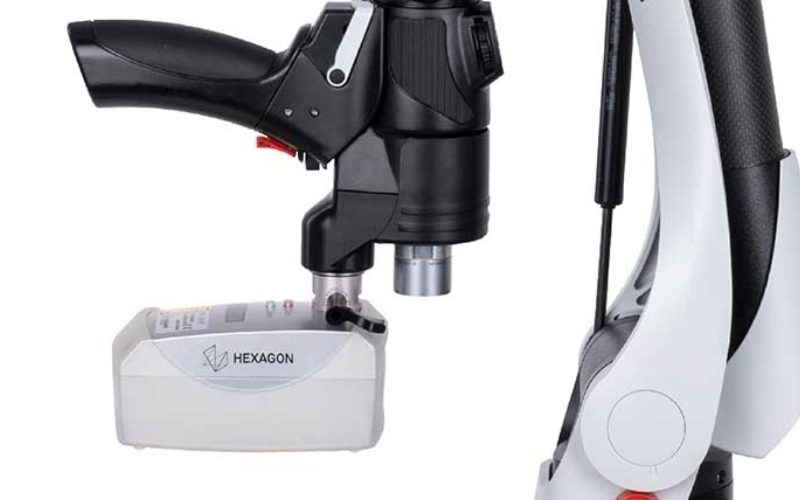

HP-L-20.8 Laser Scanner
HP-L-20.8
The HP-L-20.8 Laser Scanner is a complete rapid point cloud capture solution for the Absolute Arm. With adjustable line lengths and an increased data rate, this advanced laser scanner delivers accurate 3D point clouds at high speed, adapting automatically for excellent measurement results on even the most challenging of surfaces.
Highly portable and easy to use, the HP-L-20.8 is a powerful tool for a huge range of metrology applications including feature inspection to CAD, free-form surface inspection to CAD and reverse engineering.
Designed for Absolute Arms, the HP-L-20.8 produces first class performance on complex workpieces made from the most challenging materials. With adjustable line lengths up to 220mm and a speed up to 150,000 points per second, this flexible laser scanner delivers accurate 3D point clouds at high speed.
Benefits of laser scanning:
Rapid capture of free form surfaces
High density point cloud for accurate feature inspection
Reliable measurement of fragile, flexible and soft parts
Increased productivity with shorter measuring times
Complete digital copies created in minutes
Sensor Features:
Fast - up to 220mm line and up to 150 000 points per second
Accurate - patented technology delivers high integrity point cloud
Versatile - automatic laser power adjustment according to surface
Portable - arm and scanner fit in a single transport case
Removable - repeatable mounting means no recalibration
CMM compatible - also works on Horizontal arm, Bridge and Gantry systems
