Complex applications in particular depend on achieving very low levels of measurement uncertainty. Coordinate measuring machines of the Leitz Reference HP (High Precision) series are the right choice in this situation
Leitz Reference HP - Fast and versatile inspection

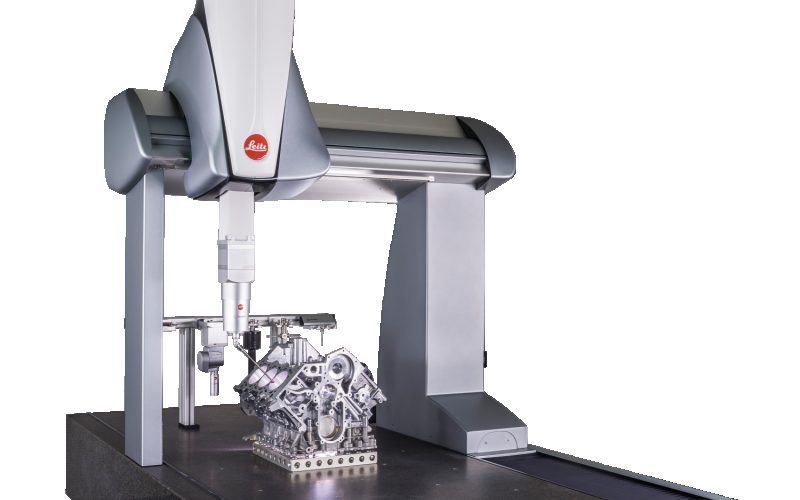

The Leitz Reference HP (High Precision)is a bridge-type CMM and gear inspection center with movable portal - the ideal machine in its class for complex measuring tasks, combining high accuracy with optimum throughput. Available in various sizes, it ensures a fast, precise and cost-effective inspection of workpieces. Equipped with the LSP probe system, the Leitz Reference can accomplish inspection tasks in single-point probing and High-Speed-Scanning mode. The Leitz Reference HP is also available with the Option XT (eXTended temperature range). With this option the CMM can be integrated in production easily.
The machines of the Leitz Reference HP series are economical scanning CMMs for solving complex measuring tasks. They are equipped with the Leitz LSP probe system developed and manufactured by Hexagon Metrology GmbH in Germany. It can execute both quick single-point probing for all typical measuring tasks and High-Speed-Scanning for form and contour measurements.
The accuracy of the measuring results and its universal applicability are decisively based on the 3D probe system. During every operation, it measures the surface of the part in the X, Y and Z directions simultaneously and, hence, automatically in the direction of the surface normal. Measuring without clamping the axes - this means that the probing system is positioned perpendicular to the surface of the part - the actual direction of the surface normal is determined for every measuring point. Thus, the deflection of the stylus can be calculated and compensated.
The Leitz Reference HP is not only a coordinate measuring machine. It can also be used as a gear inspection center in combination with the software QUINDOS. Over 30 packages, such as, for example, gears, bevel gears, worms, worm wheels, step gears, scroll and screw compressors are available.
With the Option XT - including a sophisticated temperature compensation - the Leitz Reference HP measures reliably throughout the extended temperature range of 15 to 30 degrees Celsius. Indispensible for measuring in a production environment.
