MetraSCAN 3D

MetraSCAN 3D

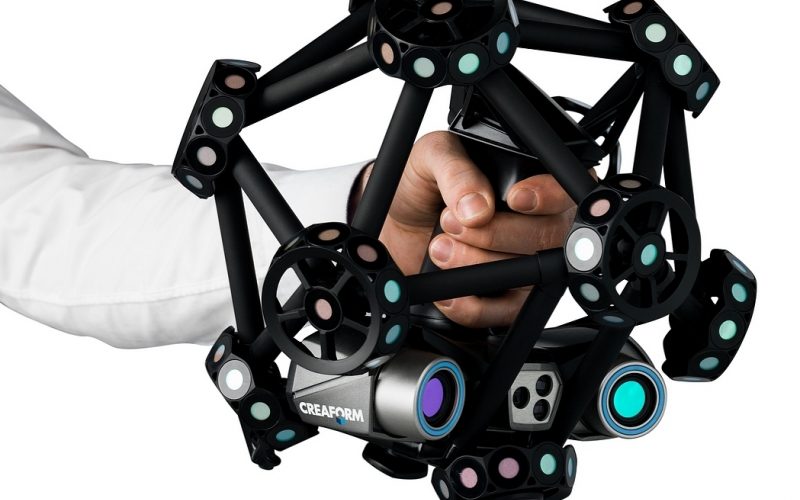

The arm-free handheld MetraSCAN 3D optical CMM scanning systems are an accurate scanning and probing solution suitable for the lab or on the shop floor. With its extendable measuring volume, incredible speed, shop-floor accuracy and impressive capabilities on challenging materials, the MetraSCAN 3D represents the most complete metrology-grade 3D scanner on the market.

Unexpected costs, production and part approval delays from non-conformities are no longer an issue when using Creaform’s portable optical CMM 3D scanner, the MetraSCAN 3D. Help operators better manage processes and respond faster to the industry’s increasing quality control (QC) requirements—all without compromising the manufacturing throughput. Optical metrology provides measurement accuracy that is insensitive to the instabilities of the environment, making the MetraSCAN 3D optical CMM the prime choice for shop-floor quality control metrology.

New Features

  • 1.5X more accurate
  • 12X faster with 7 laser crosses
  • 25% lighter
  • Scan any type of material, even black, multicolored and shiny surfaces
  • Greater volume of 16.6 m3
  • Sturdy design for shop-floor hardware reliability
  • Multi-function buttons for easier interaction with the software

TRUaccuracy

  • Metrology-grade measurements: accuracy of up to 0.030 mm, resolution of up to 0.050 mm, high repeatability and traceable certificate
  • Dynamic referencing: optical reflectors are used to create a reference system that is “locked” to the part, so users can move the object any way they want during the measurement process
  • Volumetric accuracy of 0.064 mm
  • Accurate measurement of parts ranging from 0.2 to 10 meters in size
  • No accuracy drift over time with the easy-to-perform field calibration procedure

TRUsimplicity

  • No rigid setup required: the part and the system can be moved freely at any time during measurement
  • Versatile 3D scanning: can scan any type of color and material, even black, multicolored and shiny surfaces
  • Greater and easily extendable measurement volume
  • Automatic alignment: optical reflectors allows for repetitive inspections without re-alignment
  • Optional probing capabilities by adding the HandyPROBE Next
  • Multi-function buttons for easier interaction with the software
  • Short learning curve and intuitive operation

Speed

  • Fastest 3D scanner on the market: 12 times faster than the previous generation
  • Highest measurement rate among all laser scanners: 480,000 measurements/s
  • Automatic mesh output: ready-to-use files, right as you complete acquisition
  • Quick workflow integration: fastest path from physical objects to your design or inspection workflow

TRUPortability

  • Optimized for use on the shop floor
  • Lightweight: weights under 1.38 kg
  • Portable CMM: the system can be easily brought wherever the part is
    Arm-free optical scanning system
