PRIMESCAN

PRIMESCAN

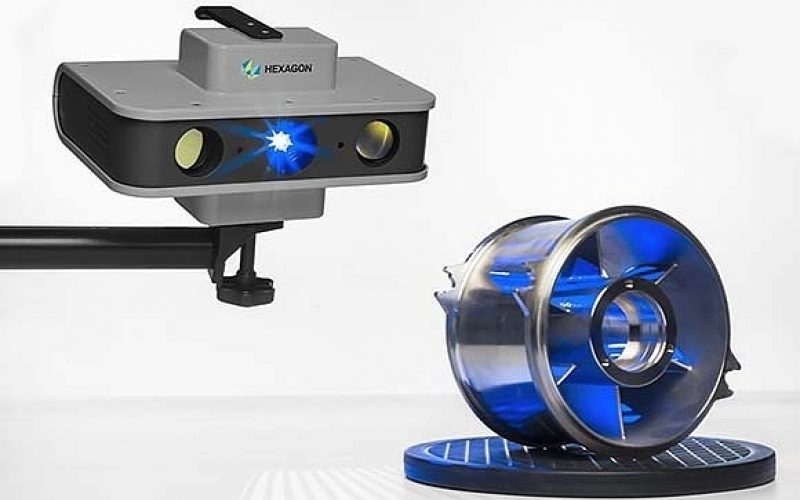

With the new scanner line AICON PrimeScan, Hexagon Manufacturing Intelligence provides an attractive entry-level solution for highly precise 3D digitisation of industrial components. The AICON PrimeScan is an entirely new development

For three-dimensional surface acquisition, white light scanning is a well-established procedure both in industrial and non-industrial applications. Using the contact-free optical scanning technology, even complex surface structures are captured swiftly and highly precise. AICON scanners are versatile thanks to their exceptional mechanical and thermal stability. They are known for both high sturdiness and highest precision.

With the new scanner line PrimeScan, AICON 3D Systems provides an attractive entry-level solution for highly precise 3D digitization of industrial components. The PrimeScan is an entirely new development. Like the classical high-end scanner lines SmartScan and StereoScan, it is based on the fringe projection technology that provides the strongest luminous power and the best projection quality. The PrimeScan works with the renowned AICON OptoCat software, and thus uses the same algorithms for fast creation of highly precise point clouds with highest data quality as SmartScan and StereoScan.

The perfect configuration for each application

The scanner line PrimeScan offers 24 fixed configurations with different resolutions and measuring fields – the perfect solution for every measuring task. It is equipped with either blue-light technology for industrial applications or white-light technology for scanning with additional color information as required in arts, culture and design.

The PrimeScan has a compact design: the base area equals a DIN A4 sheet, and the scanner weighs about 4 kg only. The working distance is short. Thus, the PrimeScan is the ideal device for easy and uncomplicated scanning in special application areas, as e.g. on a desktop or in a narrow environment like industrial surroundings.

Correspondent accessory enables both automated measurements and easy acquisition of large volume.

High-resolution sensors for high-precise digitization

Depending on the required resolution and precision, different camera resolutions are available: two, five or eight megapixel. The high-resolution sensor technology guarantees the maximum degree of detail for the object acquisition process. Measuring fields between 50 mm and 1000 mm are available. Hence, every component size can be optimally captured.

The particularly powerful projector allows for the scanning of glossy and dark surfaces without pretreatment. The integrated laser pointers support the easy positioning of the measuring object.
