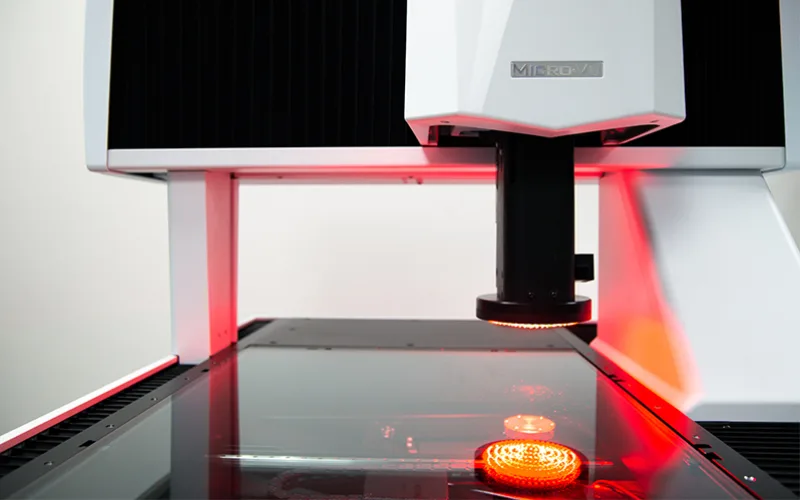

The Excel Measuring Centres are high precision measurement solutions for large parts. Complete with InSpec Metrology Software, programmable zoom lens, and servo motion control, the Excel machines measure parts up to 2.5 meters
The Excel Multisensor Measuring Centers employ new technologies to provide high speed and accuracy on reliable and affordable measurement systems.
In addition to Vision capabilities, an Excel offers Touch Probe and Laser measurement capabilities. Touch Probe capabilities improve 3D measurement capabilities. Laser capabilities improve speed for scanning and Z height measurements.
With the multisensor capabilities, advanced digital and optic zoom, proprietary edge detection, and InSpec Metrology Software, the Excel Measuring Centers can handle demanding measurement applications.

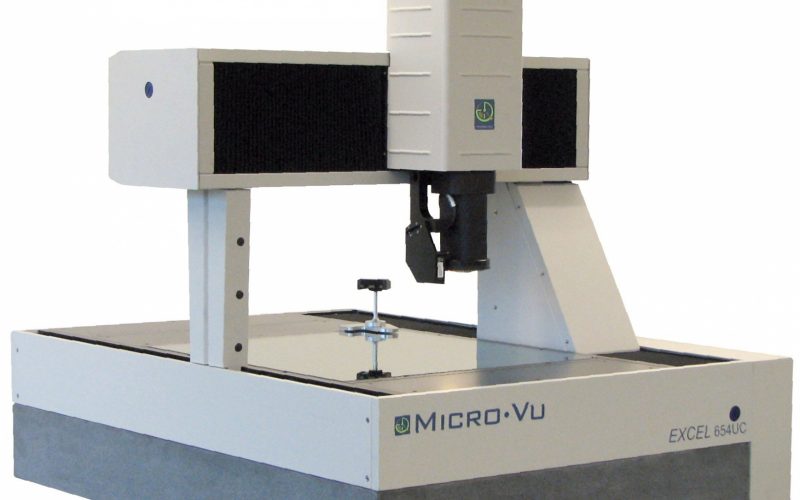

The gantry style system accomodates large parts and fixtures of multiple parts while maintaining a relatively small footprint. The Excel series of machines measures parts up to 2.5 meters long and up to 100kg in weight.
|Model||Measurement Capacity||XY Accuracy||Z Accuracy||Scale Resolution||Stage Capacity|
|Excel 511||420 x 520 x 160 mm||2.5+L/200||2.5+L/100||0.05 µm||100 kg|
|Excel 512||420 x 520 x 250 mm||2.8+L/200||3.0+L/100||0.05 µm||100 kg|
|Excel 701||660 x 700 x 160 mm||2.5+L/200||2.5+L/100||0.05 µm||100 kg|
|Excel 702||660 x 700 x 250 mm||2.8+L/200||3.0+L/100||0.05 µm||100 kg|
|Excel 704||660x700x400 mm||3.5+L/150||3.8+L/100||0.05 µm||100 kg|
