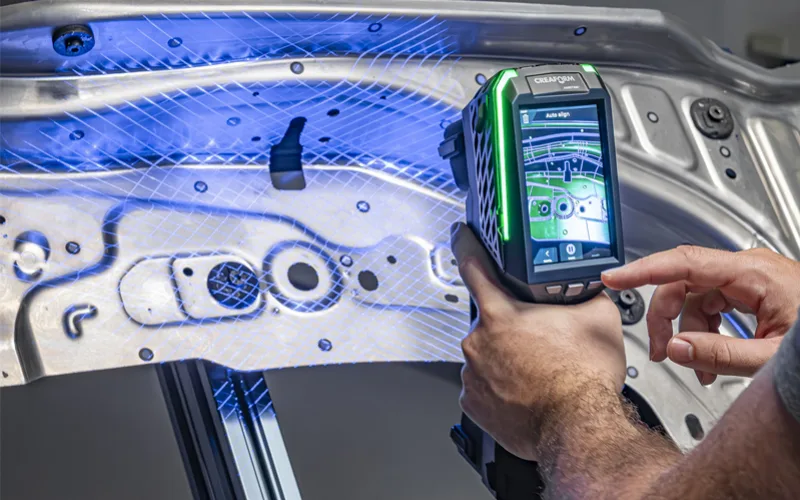

HandySCAN 3D EVO Series
HandySCAN 3D | EVO Series
The industry benchmark in handheld 3D scanning has been refined, now featuring an embedded GUI, AR capability, and wireless connectivity
Engineered for Accuracy, Designed for Usability
The HandySCAN 3D | EVO Series features a powerful embedded graphical user interface (GUl) that enhances user experience and efficiency while delivering Creaform's flagship metrology-grade qualities: proven reliability, renowned portability, and unmatched accredited accuracy.
By integrating augmented reality (AR) capability and a photo camera, the EVO Series further streamlines and enhances the inspection process—enabling QA and QC professionals to document part assessments better and faster, and execute workflows with greater efficiency.
The HandySCAN 3D | EVO Series stands out as the most powerful handheld 3D scanner on the market. It also features wireless capability and a robust 3D metrology software platform—providing a fully integrated solution, redefining ease of use, and empowering new users to quickly master the technology, all while also meeting the needs of the most advanced users.
Solving Quality Control Issues with the EVO Series
Quality control professionals need reliable results they can trust. Only then can they make informed decisions to address their manufacturing challenges.
The HandySCAN 3D | EVO Series enables you to confidently perform dimensional inspections and validate the quality of even the most complex shapes, based on verifiable and trusted specifications that meet the industry's strictest requirements.
Reliable Metrology-Grade Accuracy
Commitment to metrological rigor
ISO/IEC 17025
Based on ISO 10360 standard
True Shop-Floor Accuracy
Most accurate 3D scan data in any environment
Self-positioned handheld 3D scanner
Wireless capability
Highest Quality 3D Scan Data
Impressive high-resolution 3D scans
Superior mesh quality with the finest details
Most Versatile 3D Scanning Technology
Large scanning area for any part size
No part preparation on any challenging surface
Revamped User Interface for an Enhanced 3D Scanning Experience
The HandySCAN 3D | EVO Series was engineered to streamline the scanning process and improve ergonomics by aligning the user’s gaze with both the scan data and the physical part—making data acquisition more intuitive, comfortable, and efficient.
Built-in Display
Real-time operator guidance for easy onboarding
Instant access to scanning parameters
Direct validation of scan data completeness
Augmented Reality
Real-time on-part mesh generation
Better focus on areas requiring higher resolution
Deviations highlighted with colormap on the part
Photo Camera Integration
Ability to document the inspection process
Photos automatically linked to the 3D model
Auto-Alignment on CAD
Automatic cleanup to minimize scan editing
Streamlined functionality for repetitive inspections
| HandySCAN EVO™ | HandySCAN EVO Plus™ | HandySCAN EVO Elite™ | |
|---|---|---|---|
| Accuracy | 0.025 mm | 0.025 mm | 0.020 mm |
| Volumetric accuracy (based on part size) | 0.020 mm + 0.040 mm/m | 0.020 mm + 0.040 mm/m | 0.020 mm + 0.020 mm/m |
| Volumetric accuracy (based on part size) with scale bars included in the Accu+ Kit | N/A | 0.020 mm + 0.015 mm/m | 0.020 mm + 0.015 mm/m |
| Volumetric accuracy (based on part size) with scale bars included in the Accu+ Kit & Limited Edition | N/A | N/A | 0.015 mm + 0.015 mm/m |
| Acceptance test | Based on VDI/VDE 2634 part 3 | Based on VDI/VDE 2634 part 3 | Based on ISO 10360 |
| Measurement resolution | 0.025 mm | 0.025 mm | 0.025 mm |
| Mesh resolution | 0.100 mm | 0.100 mm | 0.100 mm |
| Measurement rate | 1,300,000 measurements/s | 1,800,000 measurements/s | 2,800,000 measurements/s |
| Light source | 22 blue laser lines (+1 extra line) | 30 Blue Laser Lines (+1 extra line) | 46 Blue Laser Lines (+1 extra line) + Laser Pointer |
| Scanner Controls | 4.3″ touchscreen display + physical buttons | 4.3″ touchscreen display + physical buttons | 4.3″ touchscreen display + physical buttons |
| Photo Camera | N/A | 12 MP, AR-enabled | 12 MP, AR-enabled |
| Real-time Calibration | Included | Included | Included |
| Automatic Alignment & Clean-up | Included | Included | Included |
| Advanced Software Features | N/A | N/A | AR colormap visualization with real‑time deviation display + QR code reading + laser‑activated clipping plane functionality |
| Working Distance | 200 to 450 mm | 200 to 750 mm | 200 to 750 mm |
| Depth of field | 250 mm | 550 mm | 550 mm |
| Part size range (recommended) | 0.05-4 m | 0.05-4 m | 0.05-4 m |
| Output formats | .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf | .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf | .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf |
| Weight | 1.02kg | 1.04kg | 1.04kg |
