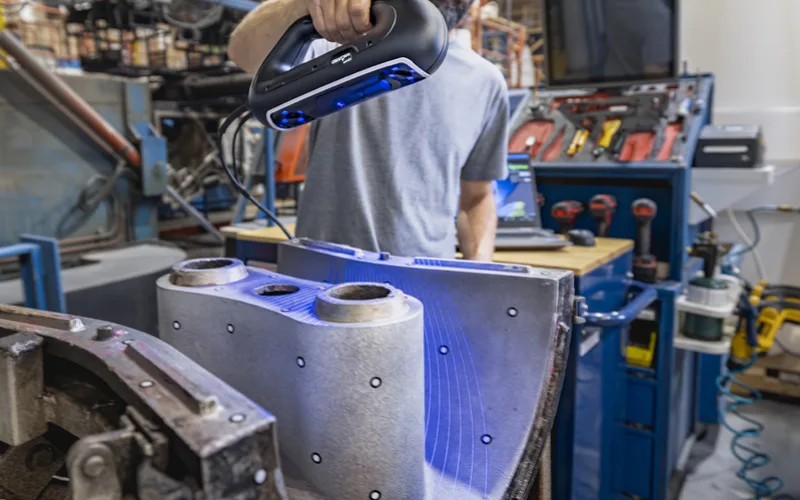

HandySCAN 3D | PRO Series

The key to an efficient reverse engineering workflow is converting 3D scan data into ready-to-use CAD and 3D print models as quickly and as seamlessly as possible.

To achieve this, product designers need a high-performance laser 3D scanner that is able to capture the finest details on any surface finish and perform reliably in any environment, all without compromising accuracy.

Equally important is choosing software that excels at advanced 3D scan processing, delivering powerful sketching and modeling tools to create the fastest, most streamlined path from scan to CAD, with the ability to compare 3D models directly against the original scan data.

Discover how the HandySCAN 3D | PRO Series is the go-to reverse engineering solution.


Accuracy & High level of detail

The HandySCAN 3D | PRO Series delivers accurate and rigorous dimensional measurements of complex shapes in any environment, regardless of setup conditions or the user’s experience. The dynamic referencing feature allows users to generate high-quality .stl models of any surface, capturing the finest details of intricate part features, even in challenging conditions.

Accuracy
Up to 0.030 mm (0.0012 in)

Volumetric accuracy
0.020 ± 0.060 mm/m (0.0008 in ± 0.00072 in/ft)

High repeatability
Reliable 3D scanning of any object

High resolution
Superior-quality scan data with fine detail

Fastest time to CAD

Combined with the 3D scanner's versatility and ergonomic design, the software is seamlessly integrated to offer an intuitive, easy-to-use experience for any reverse engineering project. The Scan-to-CAD software module, part of the Creaform Metrology Suite, further accelerates the extraction of 3D scan features, generating accurate CAD models on the first attempt and ensuring the fastest path to CAD.

• Capability to quickly master complex and difficult surfaces
• Built-in software for advanced processing of 3D scan files
• Optimized sketching and modeling tools for 3D data
• Real-time CAD model deviation analysis

Portability

This handheld 3D scanner is a stand-alone device that requires no tripod or external tracking system to operate. Compact enough to fit in a small suitcase, it can be taken anywhere and used in any environment—without compromising performance.

Lightweight and compact
Fit into a suitcase

No rigid setup required
The scanner and part can move freely during scanning

On-the-go scanning
Use it in the lab or on the shop floor

Quick setup
Up and running in less than 2 minutes
