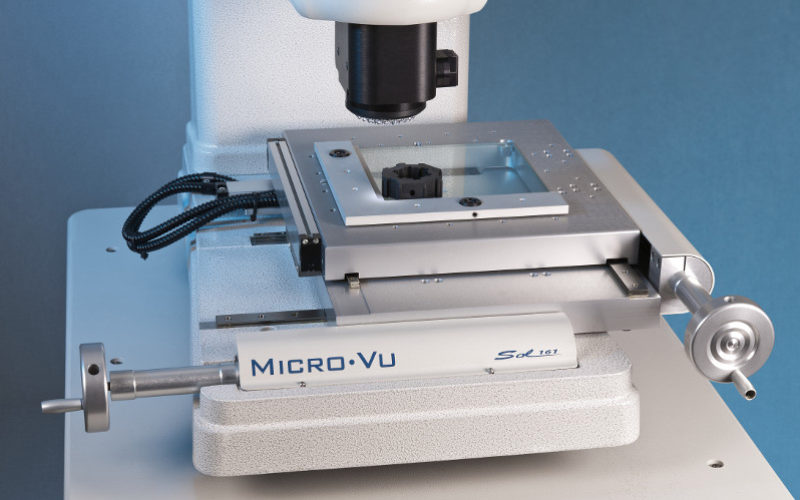

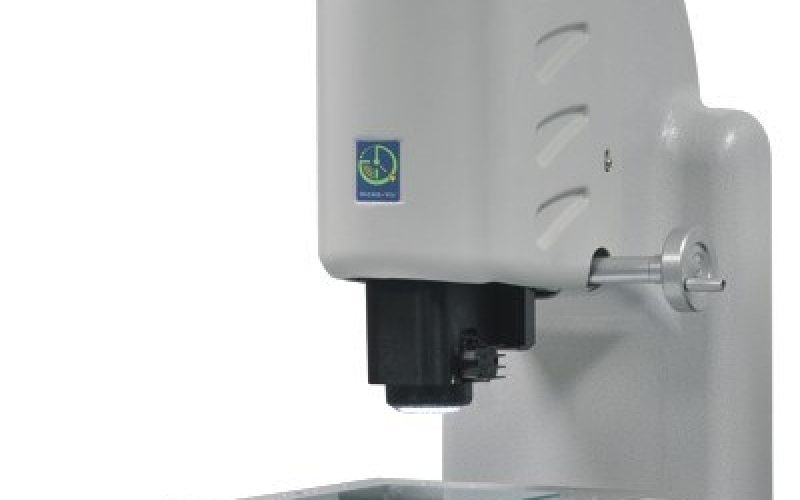

The Micro-Vu Sol is a semi-automated optical measuring machine, incorporating programmable lighting with 19.5x zoom lens. The InSpec software guides the operator to run repetitive measurement routines in a clear and consistent manner
The Sol Vision System implements new technologies to provide speed and accuracy on a reliable and affordable measuring machine. The Sol bridges the gap between manual and automated measurement systems.
A programmable 19.5x zoom (6.5x optical and 3x digital), non-linear compensation (optics and stage), advanced lighting, and part program compatability make the Sol the most advanced machine in its class.
Micro-Vu's InSpec Metrology Software drives the Sol in addition to manual, vision, and multisensor systems. InSpec's point-and-click measuring and proprietary edge detection simplify demanding measurement applications.
|Model||Measurement Capacity||XY Accuracy||Z Accuracy||Scale Resolution||Stage Capacity|
|Sol 161||160 x 160 x 160 mm||2.8+L/150||2.8+L/100||1.0 µm||10 kg|
|Sol 311||315 x 315 x 160 mm||4.5+L/150||2.8+L/100||1.0 µm||10 kg|
|Sol 312||315 x 315 x 250 mm||4.5+L/150||3.3+L/75||1.0 µm||10 kg|
